Fire Station Diesel Exhaust Fume Control

Firetruck parked outside a fire station (Source)

Diesel exhaust fumes pose health risks to firefighters. Diesel-powered firetrucks emit harmful diesel exhaust when entering and leaving the fire station. These fumes must be properly controlled in order to prevent continuous exposure to firefighters. Without proper diesel exhaust fume control, the hazardous fumes may enter living quarters at the fire station increasing the exposure and health risks. Exposure to diesel exhaust fumes increases depending on the number of calls made during a shift, the design of the fire station, and the ventilation system air flow pattern. Ambient air cleaners and portable room air cleaners offer an economical and practical solution to control diesel exhaust fumes in fire stations.

What is Diesel Exhaust?

Diesel powered vehicles, such as the majority of firetrucks, produce diesel exhaust through partial combustion of diesel fuel(Reference 2). Complete combustion of diesel fuel generates byproducts of water and carbon dioxide, however partial combustion creates a diverse mixture of gases, liquids, and particulates. The exact gas mixture varies but may contain carbon dioxide, carbon monoxide, nitrogen dioxide, and sulfur dioxide. Diesel exhaust particulates contain carbon with a large surface area which allows for the high absorption of trace metals, polynuclear aromatic hydrocarbons (or soot), and volatile organic compounds (known as VOCs including benzene, formaldehyde, and polycyclic).

When compared to gasoline-powered vehicles, diesel automobiles produce significantly less carbon monoxide but higher amounts of nitrogen oxides and aldehydes. Particulates emitted from diesel exhaust travel up to 10 times further than gasoline exhaust. Due to the microscopic size of diesel exhaust particles (< 1 µm), when inhaled they are more likely to travel to deep regions of the lungs causing lasting health effects. Scientists suggest that these microscopic particles present the most health risks out of any of the particulates contained in diesel exhaust.

Health Effects of Diesel Exhaust

Government organizations have assessed health risks and most find diesel exhaust to be carcinogenic or likely to cause cancer in humans. In 2012, the International Agency for Research on Cancer (IARC) classified diesel exhaust to be carcinogenic to humans. The IARC concluded that there was sufficient evidence that diesel exhaust causes lung cancer with a slight increase in the risk of developing bladder cancer. The National Toxicology Program (NTP), Environmental Protection Agency (EPA), and National Institute for Occupational Safety and Health (NIOSH) all agree that diesel exhaust is likely to be carcinogenic to humans.

Scientific studies with humans have shown an association between occupational exposure to diesel exhaust and lung cancer. Animal studies confirm diesel exhaust and lung cancer association with the development of lung tumors in rats after exposure to diesel exhaust fumes in high concentrations.

In addition to cancer, diesel exhaust has been shown to cause other respiratory effects such as a cough, decrease in lung function, increase in asthma, and irritation to the nose, throat, and lungs. Besides respiratory effects, diesel exhaust exposure can cause irritation to the eyes, nausea, and heart disease. Likewise, the increased exposure of carbon monoxide causes a reduction of oxygen in the blood and in the organs resulting in impaired vision, decreased manual dexterity, interruption to learning ability, and interference of performance of complex tasks.

Diesel Exhaust Exposure Levels in Fire Stations

NIOSH conducted two recent site evaluations of five fire stations for the presence of diesel exhaust fumes. In 2015, NIOSH assessed three fire stations by request for diesel exhaust exposure. NIOSH tested for carbon, carbon monoxide, and 1-nitropyrene in the fire station truck bay, office and living areas. Please see Table 1 for average readings collected during the testing. Carbon levels were higher in the truck bays especially in one station that had a single door entry for the fire truck. However, all three fire stations exhibited low levels of carbon in the living spaces. Carbon monoxide levels were well below any government regulations for carbon monoxide. Occupational Safety and Health Administration (OSHA) has a permissible exposure limit (PEL) for carbon monoxide of 50 ppm and NIOSH’s recommended exposure limit (REL) is 35 ppm. 1-nitropyrene could not be detected at the fire stations as the level was below the minimum detectable level of 0.23 µg per cubic meter.

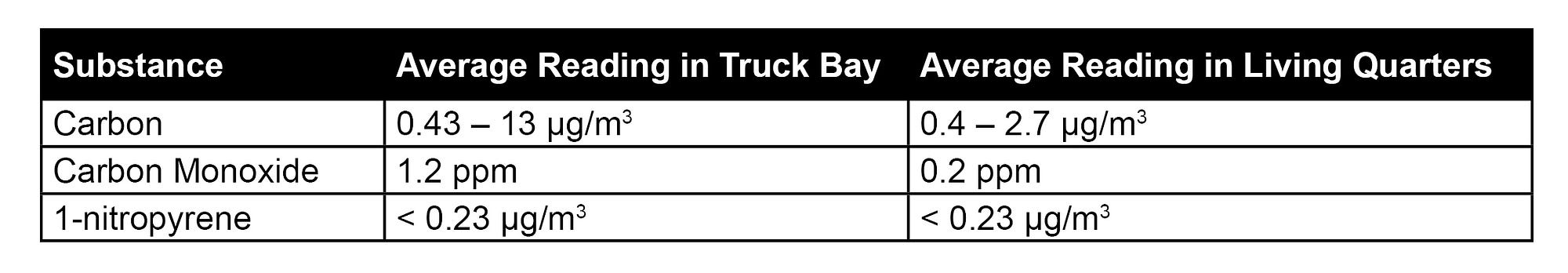

Table 1: 2015 NIOSH Testing Average Readings

In 2016, NIOSH tested the levels of diesel exhaust exposure in two other fire stations. Please see Table 2 for the average readings for this study. The carbon levels again were higher in the truck bay but lower in the living quarters. No carbon monoxide or 1-nitropyrene could be detected but there was a high amount of carbon dioxide present in both fire stations living quarters. Normal levels are 350 ppm — 450 ppm and the fire station was minimally occupied meaning the living quarters were not receiving adequate ventilation and needed more fresh air supplied to the living areas.

Table 2: 2016 NIOSH Testing Average Readings

Regulations and Reducing Diesel Exhaust Exposure

One big issue with the NIOSH evaluations is there is no set procedure for testing for diesel exhaust as a whole due to the complex makeup of gases and particulates. Agencies can only test for parts for the diesel exhaust such as 1-nitropyrene, acrolein, benzene, carbon dioxide, carbon monoxide, formaldehyde, nitrogen dioxide, and sulfur dioxide. OSHA, NIOSH, and ACGIH only regulate some of these components that make up diesel exhaust and do not regulate whole diesel exhaust. See Table 3 for regulations pertaining to these components. Because they do not regulate for whole diesel exhaust, employees are not adequately protected from the dangers of diesel exhaust fumes by simply following regulations. NIOSH does recommend reducing exposure as much as feasibly possible6. World Health Organization (WHO) suggests that employers take measures to reduce working and general population exposure to diesel exhaust to improve overall public health and safety. Fire stations must seek cost-effective methods to reduce exposure of diesel exhaust to protect employee health and safety while minimizing worker lawsuits.

Table 3: Government Regulations for Parts of Diesel Exhaust

Controlling Exposure to Diesel Exhaust

Many fire stations use exhaust fans to control ambient diesel exhaust fumes. Sentry Air Systems filtration systems provide added benefits over using an exhaust fan to control diesel exhaust fumes. Sentry Air Systems are more environmentally friendly because the powerful fan pulls the fumes and particulates into the filtration system to remove the contaminants before releasing clean air into space. An exhaust fan would simply be polluting the contaminated air into the outside air. Exhaust fans also usually only run when high levels of carbon monoxide are detected, while an air purification system provides ongoing protection against lingering diesel exhaust fumes and particulates. Also, Sentry Air filtration systems are much simpler to install without expensive ductwork, makeup air, or a hole to be cut in the wall or ceiling. Our systems can be hung or mounted to the ceiling, mounted on a fume extractor stand, or set on a table or floor nearby the exhaust source.

Sentry Air filtration system utilizes high-quality filters including HEPA (up to 99.97% efficiency on particles as small as 0.3 microns), ASHRAE (up to 95% efficiency on particles as small as 0.5 microns) and activated carbon filters. Activated carbon filters offer vital protection against harmful VOCs commonly found in diesel exhaust.

Model 700 Ambient Air Cleaner
SS-700-FH

Best Use: Suspend from the ceiling in the fire truck bay for ambient air cleaning

Features: Quad stage filtration system. Pre and post filters with two full size filters. Used for Particulate and chemical fume removal from ambient air.

Suggested Main Filters: HEPA and 8 lb activated carbon filter

Mounting: Ceiling, hanging, fume extractor stand, or table

Air Volume: Up to 480 CFM with HEPA and 8 lb activated carbon filter

Model 2000 Ambient Air Cleaner
SS-2000-FH

Best Use: Suspend from the ceiling in the fire truck bay for ambient air cleaning

Features: Dual stage filtration, prefilter & main filter. Particulate removal from ambient air

Filters: Prefilter — MERV 7 (70% efficient on particles 3 microns and larger)
Main Filter — ASHRAE (95% efficiency on particles 0.5 microns and larger)

Mounting: Hanging, table, or fume extractor stand

Air Volume: Up to 2,000 CFM

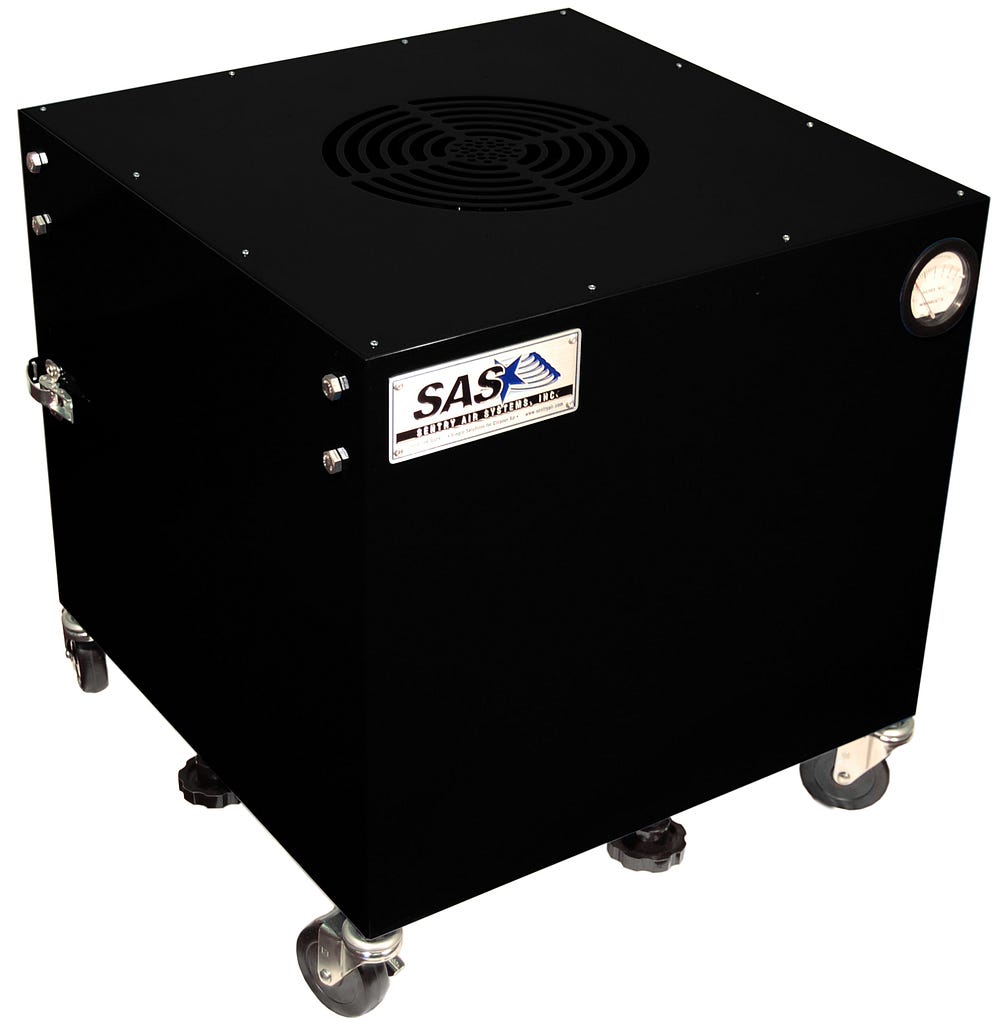

Model 300 Portable Room Air Cleaner
SS-300-PRAC

Best Use: Placed in living areas or offices for general room air cleaning

Features: Small footprint on heavy duty casters for easy portability. Compact and high efficiency. Economical removal of particulates, organic chemicals and odors.

Suggested Main Filters: HEPA and 4 lb activated carbon filters

Mounting: Heavy Duty Casters for placement on the floor

Air Volume: Variable Speed Control, High — 350 CFM, Low — 25 CFM

Model 400 Portable Room Air Cleaner
SS-400-PRAC

Best Use: Placed in living areas or offices for general room air cleaning

Features: Small footprint on heavy duty casters for easy portability. Compact and high efficiency. Economical removal of particulates, organic chemicals and odors.

Suggested Main Filters: HEPA and 8 lb activated carbon filters

Mounting: Heavy Duty Casters for placement on the floor

Air Volume: Variable Speed Control, High — 700 CFM, Low — 50 CFM

Contact Sentry Air Systems today for a solution to control diesel exhaust fumes.

sales@sentryair.com • 1.800.799.4609 • www.sentryair.com

Sources

1. Baldwin, Tommy; Hales, Thomas; Niemeier, Maureen. “Controlling Diesel Exhaust Exposure Inside Firehouses.” Fire Engineering. 1 Feb. 2011, Web. 12 Oct. 2018. http://www.fireengineering.com/articles/print/volume-164/issue-2/features/controlling-diesel-exhaust-exposure-inside-firehouses.html.

2. Blomberg, A.; Dahlén, S-E.; Parnia, S.; Sandström, T.; Stenfors, N.; Sydbom, A.. “Health Effects of Diesel Exhaust Emissions.” European Respiratory Journal. 2001, 17: 733–746, Web. 12 Oct. 2018. http://erj.ersjournals.com/cgi/pmidlookup?view=long&pmid=11401072.

3. Cowie, Christine. “Health Impacts of Diesel Emissions.” 13 June 13. Web. 12 Oct. 2018. https://pdfs.semanticscholar.org/presentation/d0aa/566bb11f2728a707cd0916e3b1c9f4d1808f.pdf.

4. Chin, Jo-Yu et al. “Gaseous and Particulate Emissions from Diesel Engines at Idle and under Load: Comparison of Biodiesel Blend and Ultralow Sulfur Diesel Fuels.” Energy & fuels : an American Chemical Society Journal 26.11 (2012): 6737–6748. PMC. Web. 12 Oct. 2018. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4339034/.

5. “IARC: Diesel Engine Exhaust Carcinogenic.” International Agency for Research on Cancer. 12 June 2012. Press Release. 12 Oct. 2018. https://www.iarc.fr/en/media-centre/pr/2012/pdfs/pr213_E.pdf.

6. Broadwater, Kendra; Couch, James; de Perio, Marie. “Evaluation of Diesel Exhaust Exposures at Multiple Fire Stations in a City Fire Department.” Health Hazard Evaluation Program. Dec. 2016. Web. 12 Oct. 2018. https://www.cdc.gov/niosh/hhe/reports/pdfs/2015-0159-3265.pdf?s_cid=102015-HETAB-RSS-001.

7. Burr, Gregory; Li, Jessica. “Evaluation of Diesel Exhaust Exposure at Two Fire Stations.” Health Hazard Evaluation Program. Feb. 2017. Web. 12 Oct. 2018. https://www.cdc.gov/niosh/hhe/reports/pdfs/2016-0094-3267.pdf.

8. Copeland, Michelle; Harris, Brian. “Confronting Fire Department Diesel Exhaust Exposure Concerns — Part 1.” Firehouse. 24 Sept. 2017. Web. 12 Oct. 2018. https://www.firehouse.com/stations/architects/article/12369953/confronting-fire-department-diesel-exhaust-exposure-concerns-fire-station-safety.

9. Occupational Safety and Health Administration. “OSHA Annotated Table Z-1.” Permissible Exposure Limits. Web. 12 Oct 2018. https://www.osha.gov/dsg/annotated-pels/tablez-1.html.

10. Copeland, Michelle; Harris, Brian. “Confronting Fire Department Diesel Exhaust Exposure Concerns — Part 6: Air Testing & Communication of Exposure Results.” Firehouse. 27 Feb. 2018. Web. 12 Oct. 2018. https://www.firehouse.com/stations/building-components/exhaust-removal/article/20994149/diesel-exhaust-exposure-concerns-air-testing-and-exposure-results.
